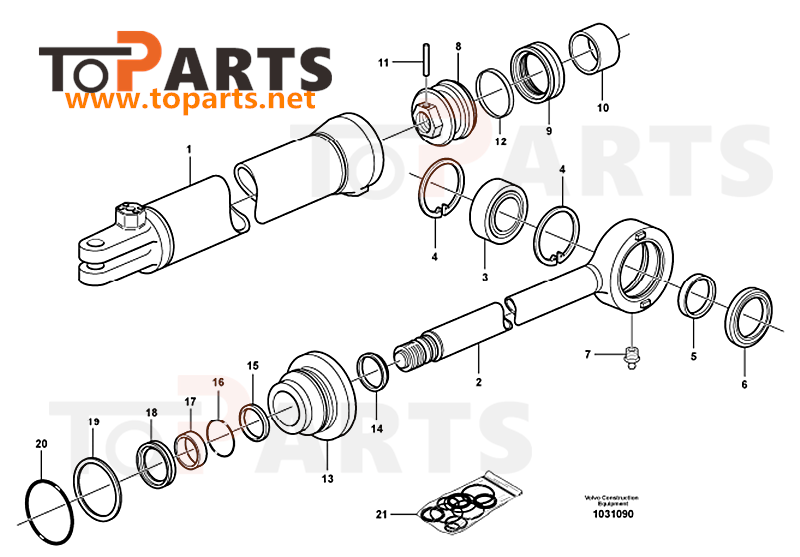

Parts list
|
NO. |
Part Number |
Quantity |
Product Name |
|
|
VOE17438834 |
2 |
Hydraulic cylinder |
|
1 |
VOE11201774 |
1 |
•Cylinder tube |
|
2 |
VOE17318282 |
1 |
•Piston rod |
|
3 |
VOE11088231 |
1 |
•Roller bearing |
|
4 |
VOE914554 |
2 |
•Retaining ring |
|
5 |
VOE11055909 |
2 |
•Sleeve |
|
6 |
VOE11055910 |
2 |
•Sealing ring |
|
7 |
VOE914167 |
1 |
•Lubricating nipple |
|
8 |
VOE11202485 |
1 |
•Piston |
|
9 |
VOE11202573 |
1 |
•Piston seal |
|
10 |
VOE11202567 |
1 |
•Piston rod seal |
|
11 |
VOE4782720 |
1 |
•Spring pin |
|
12 |
VOE11202577 |
1 |
•Guide ring |
|
13 |
VOE11202484 |
1 |
•Piston rod guide |
|
14 |
VOE11202571 |
1 |
•Scraper ring |
|
15 |
VOE11202567 |
1 |
•Piston rod seal |
|
16 |
VOE925263 |
1 |
•O-ring |
|
17 |
VOE11202575 |
1 |
•Guide ring |
|
18 |
VOE11202569 |
1 |
•Piston rod seal |
|
19 |
VOE11043006 |
1 |
•Back-up ring |
|
20 |
VOE925083 |
1 |
•O-ring |
|
21 |
VOE11712388 |
1 |
Sealing kit |
Product Description

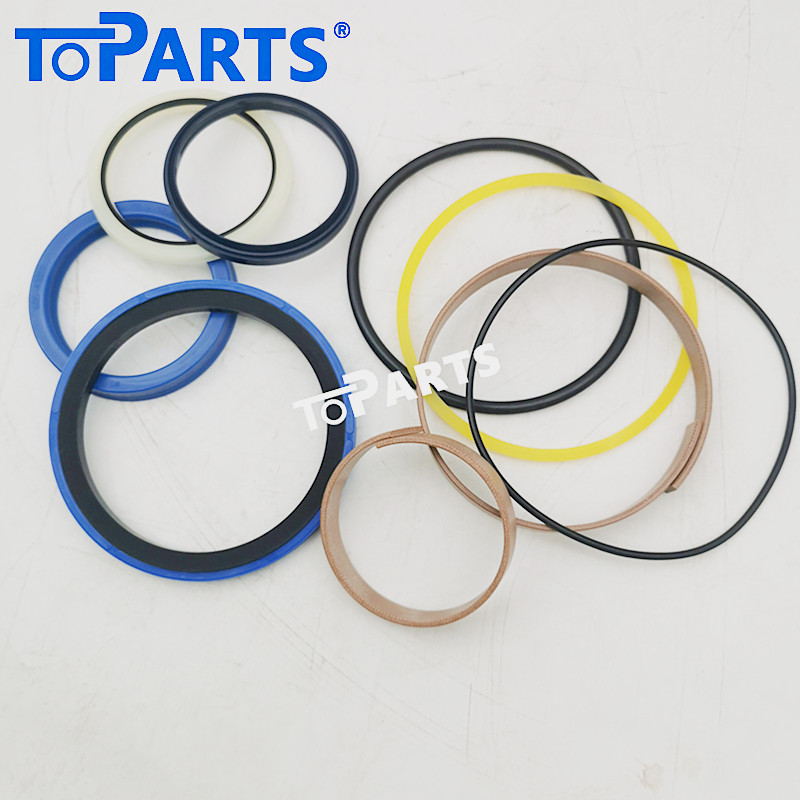

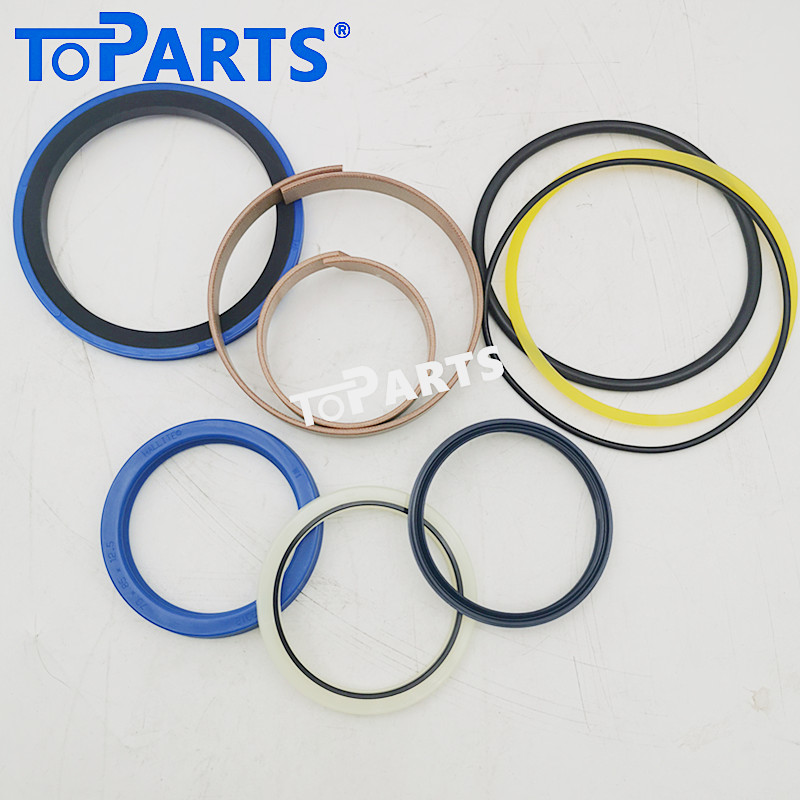

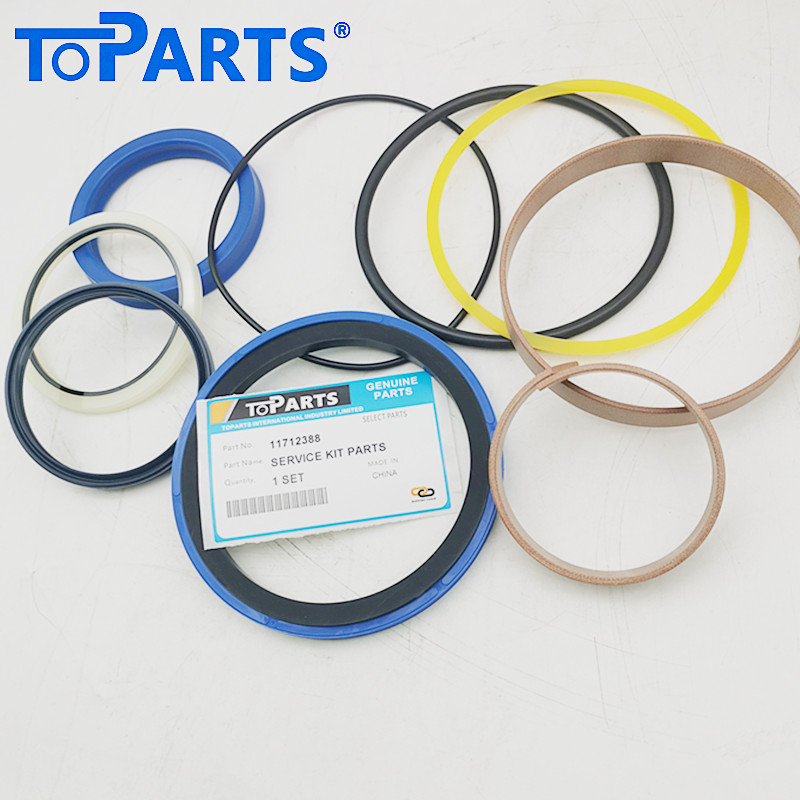

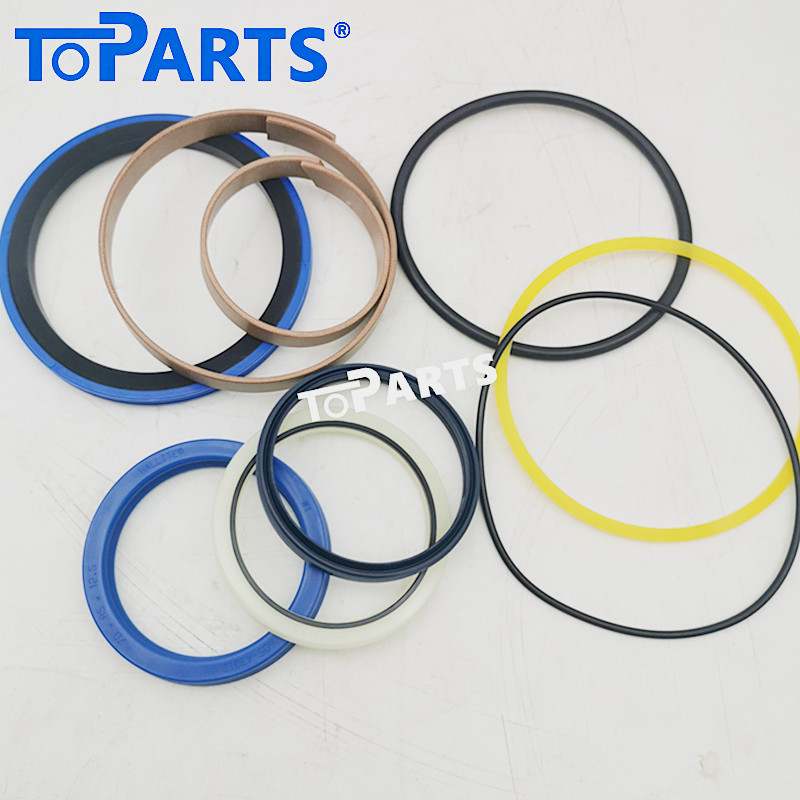

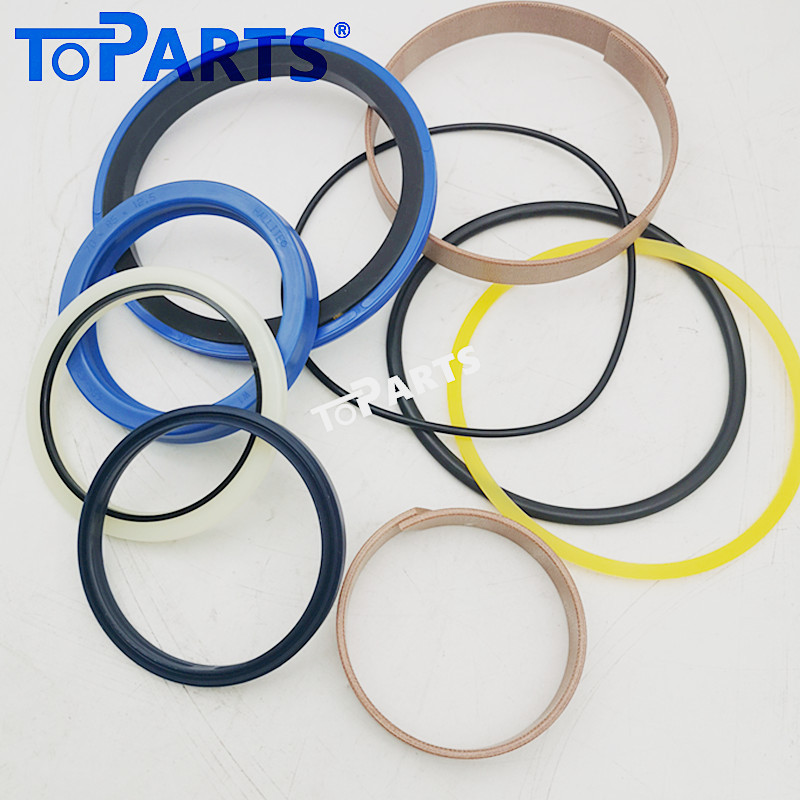

High-Performance Steering Cylinder Seal Kit for Volvo A35D Articulated Haulers
Ensure maximum steering precision and operational uptime for your Volvo A35D Dump Truck with this premium Steering Cylinder Seal Kit. Specifically engineered to handle the massive hydraulic forces required for articulated steering, this kit (Part Numbers 11712388 and 17438834) provides a complete solution for repairing leaking or worn cylinders.
At Toparts, we manufacture our seal kits using advanced materials designed to withstand the extreme pressures and rugged environments of mining and large-scale earthmoving sites.
Product Features:
Exact Fitment: Tailored specifically for the Volvo A35D Articulated Hauler steering system.
Dual Part Number Support: Fully compatible with OEM numbers 11712388 and 17438834.
Heavy-Duty Construction: Features reinforced Polyurethane (PU) and Nitrile (NBR) to resist wear, heat, and high hydraulic impact.
Leak-Free Reliability: Precision-engineered to prevent internal fluid bypass, ensuring responsive steering in tough terrain.
Comprehensive Kit: Includes all essential rod seals, piston seals, wiper seals, and O-rings for a complete cylinder overhaul.
Technical Specifications:
Machine Model: Volvo A35D
Machine Type: Articulated Hauler / Dump Truck
Component Type: Steering Cylinder
Primary Part Numbers: 11712388, 17438834
Category: Hydraulic Steering Repair
