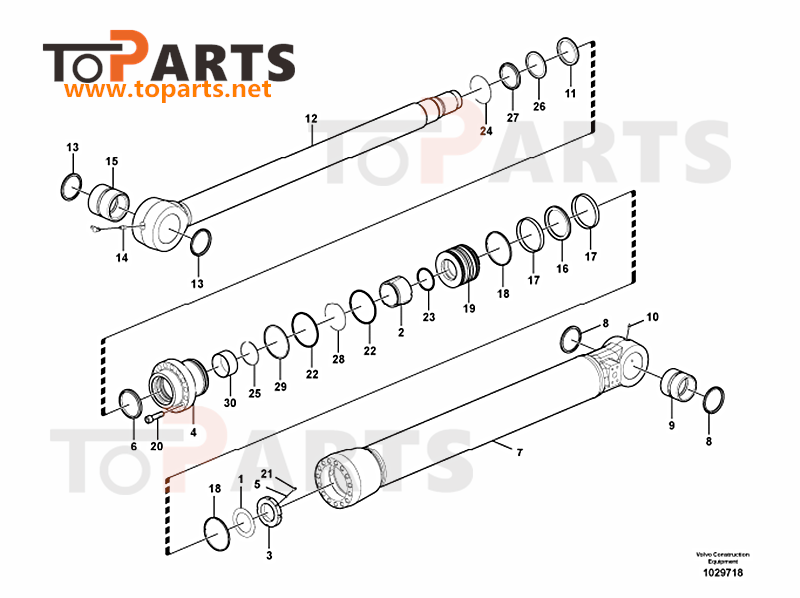

Parts list
|
NO. |
Part Number |
Quantity |
Product Name |
|
|
VOE14598125,14696683 |
1 |
Bucket cylinder |
|
1 |
VOE14884934 |
1 |
•Lock Washer |
|
2 |
SA1146-00220 |
1 |
•Cushion |
|
3 |
SA1146-06880 |
1 |
•Lock nut |
|
4 |
VOE14623512 |
1 |
•Head |
|
5 |
SA1146-06870 |
1 |
•Pad |
|
6 |
SA1146-08090 |
1 |
•Seal |
|
7 |
|
1 |
•Tube |
|
8 |
VOE14560205 |
2 |
••Seal |
|
9 |
SA9624-11617 |
1 |
••Bushing |
|
10 |
SA9481-11003 |
1 |
••Nipple |
|
11 |
SA9567-20801 |
1 |
•Back-up ring |
|
12 |
VOE14563991 |
1 |
•Rod |
|
13 |
VOE14560205 |
2 |
••Seal |
|
14 |
SA9481-11003 |
1 |
••Nipple |
|
15 |
VOE14517943 |
1 |
••Bushing |
|
16 |
VOE14512070 |
1 |
•Seal |
|
17 |
SA9565-11200 |
2 |
•Wear ring |
|
18 |
SA9568-01200 |
2 |
•Seal |
|
19 |
|
1 |
•Piston |
|
20 |
VOE13949445 |
12 |
•Screw |
|
21 |
VOE13963059 |
1 |
•Set screw |
|
22 |
VOE990645 |
2 |
•O-ring |
|
23 |
VOE990635 |
1 |
•O-ring |
|
24 |
SA9556-08000 |
1 |
•Retaining ring |
|
25 |
SA9557-07000 |
1 |
•Retaining ring |
|
26 |
SA9563-20801 |
1 |
•Seal |
|
27 |
SA9564-20800 |
1 |
•Seal |
|
28 |
SA9566-31100 |
1 |
•Back-up ring |
|
29 |
SA9566-11100 |
1 |
•Back-up ring |
|
30 |
SA9612-08040 |
1 |
•Bearing |
|
100 |
VOE14589132(VOE14515053) |
1 |
Sealing kit |
|
Cylinder Position |
Primary Part Number |
Alternative / Updated Number |
Maintenance Suggestion |
|
Boom Cylinder |
14513711 |
14589130 / 14510287 |
Critical for lifting stability; recommended to replace in pairs (Left & Right). |
|
Arm / Stick Cylinder |
14513712 |
14589131 |
Handles the main digging force; check for leaks when "arm drift" occurs. |
|
Bucket Cylinder |
14515053 |
14589132 / 14589158 |
Most frequent movement; standard replacement part for maintenance. |
|
Track Adjuster Seal |
14531302 |
14502856 |
Essential for track tension; prevents track derailment in rocky terrain. |
|
Main Pump Seal Kit |
14533496 |
VOE14533496 |
Best for restoring hydraulic flow efficiency and overall machine speed. |
Product Description

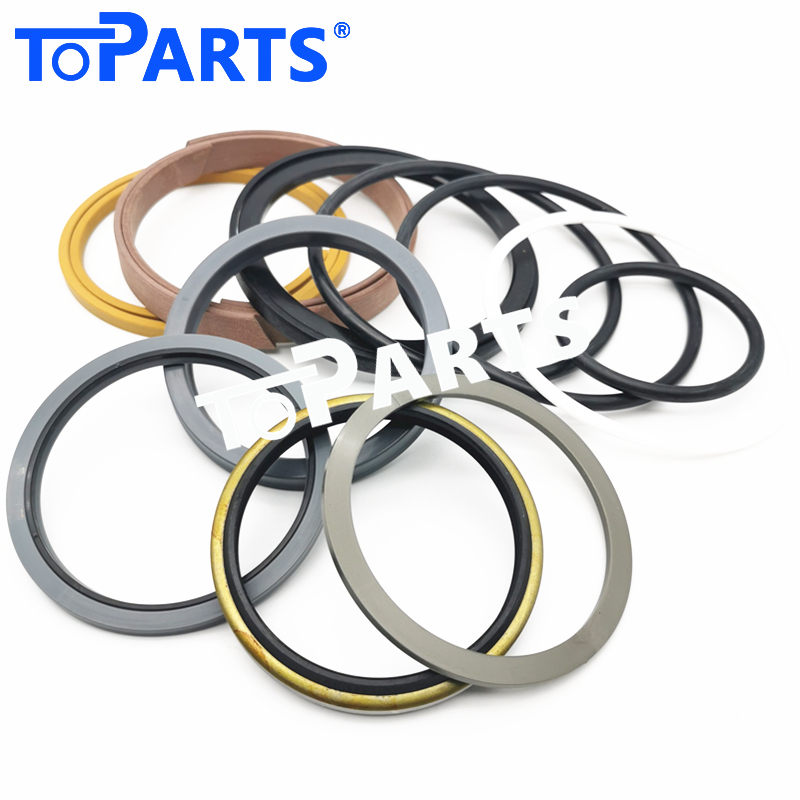

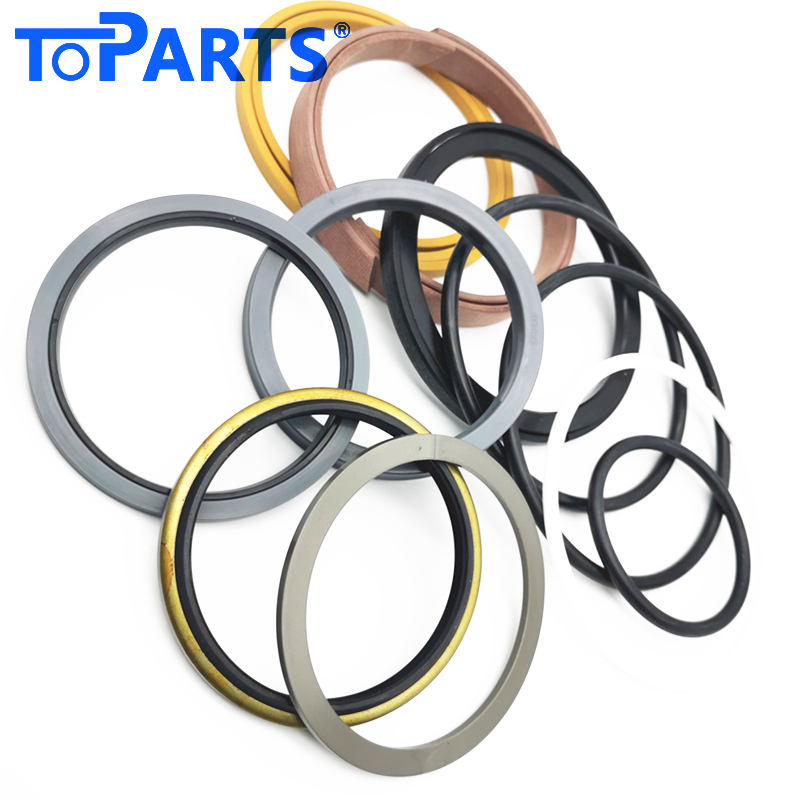

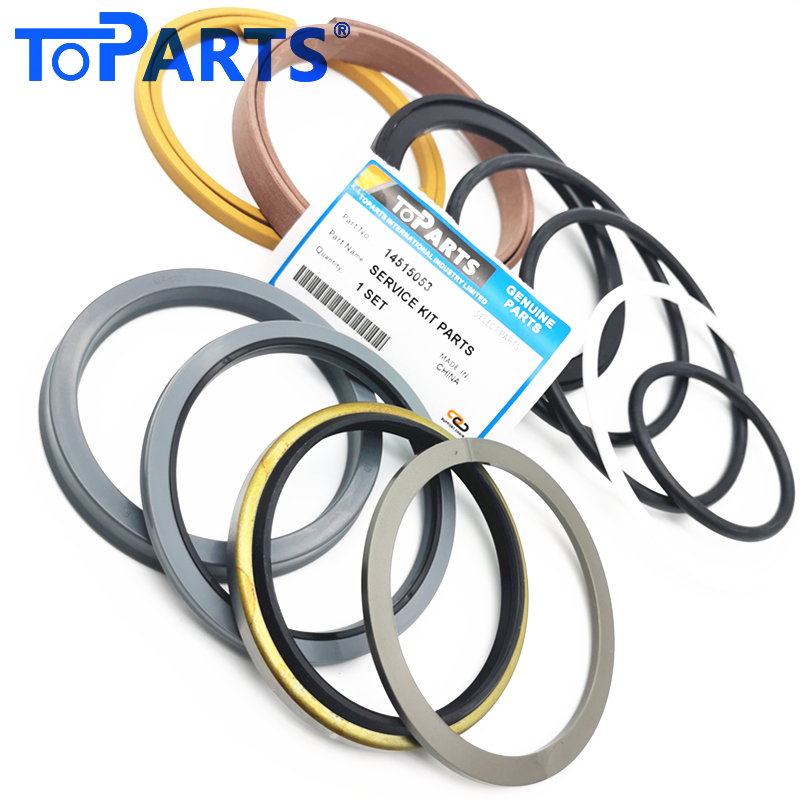

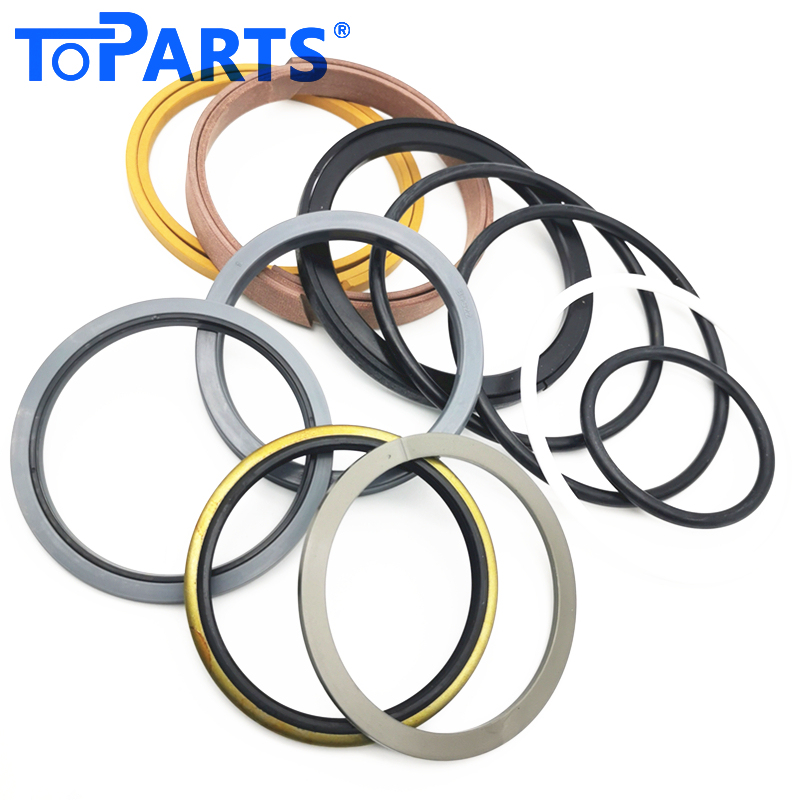

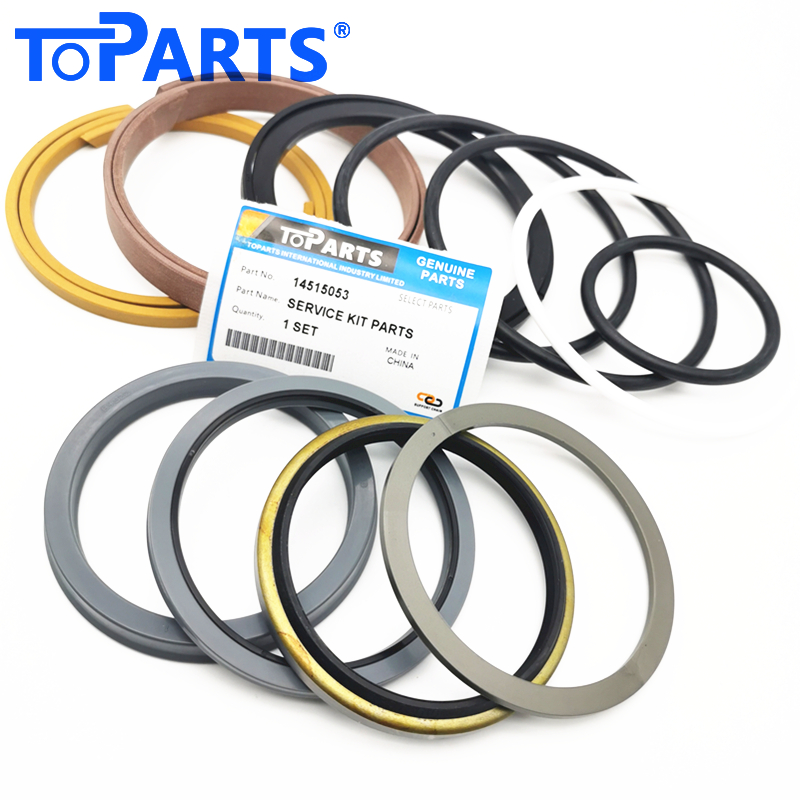

High-Performance Bucket Cylinder Service Seal Kit for Volvo EC210BL Excavators
Restore the digging efficiency and breakout force of your Volvo EC210BL with this premium Bucket Cylinder Seal Kit. As the most active component in excavation, the bucket cylinder requires high-durability sealing to prevent power loss. This kit (Part Numbers 14515053, 14589132, and 14589158) provides a complete solution for professional-grade repairs.
At Toparts, we specialize in sealing solutions for high-frequency hydraulic movements. Our kits are manufactured from advanced materials that resist heat build-up and high-pressure friction, ensuring your EC210BL maintains peak performance in even the toughest soil conditions.
Product Features:
Exact Fitment: Tailored specifically for the Volvo EC210BL (EC210B) excavator bucket hydraulic system.
Multi-Part Number Support: Fully compatible with OEM numbers 14515053, 14589132, and 14589158.
Premium Material Grade: Features high-grade Polyurethane (PU) and Nitrile (NBR) for maximum resistance to wear, oil, and extreme temperatures.
Leak-Free Reliability: Precision-engineered to prevent internal fluid bypass, ensuring your bucket maintains its digging force and doesn't "drift."
All-in-One Overhaul Kit: Includes all essential rod seals, piston seals, wiper/dust seals, and O-rings for a professional and lasting cylinder repair.
Technical Specifications:
Machine Brand: Volvo
Model: EC210BL / EC210B
Component Type: Bucket Cylinder / Digging Cylinder
Part Numbers: 14515053, 14589132, 14589158
Category: Hydraulic Repair Components
Condition: Brand New Aftermarket Replacement
