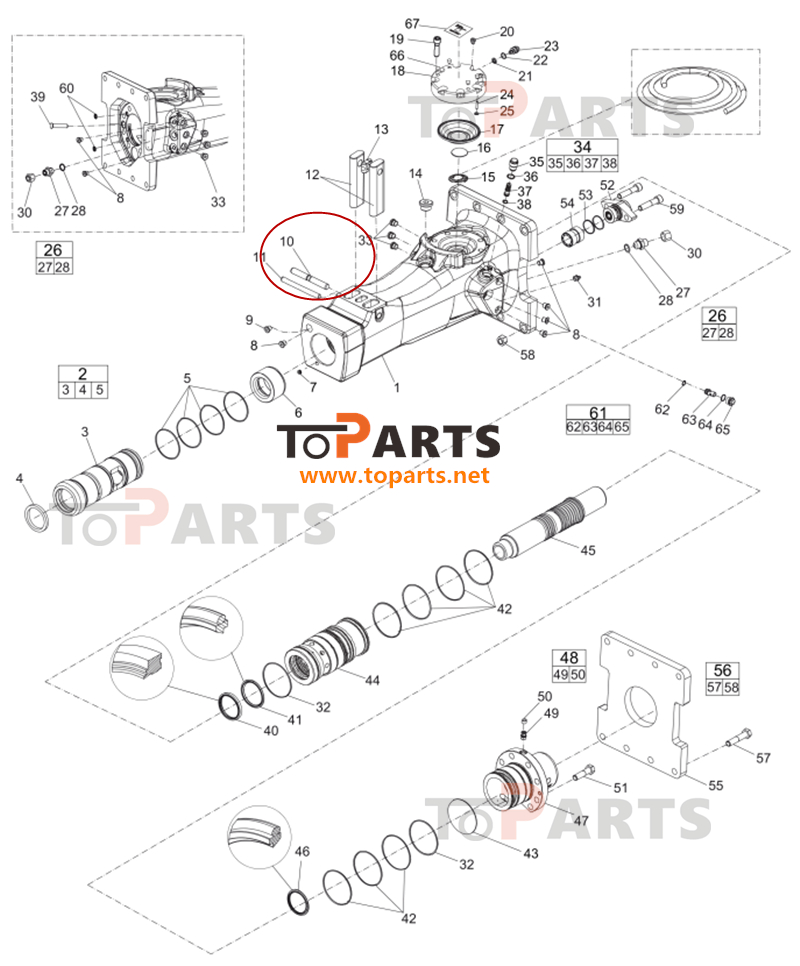

Item |
Part No |
Name |
Qty |
|
1 |
- |
Breaker body |
1 |
|
2 |
3315354080 |
Bushing standard, complete |
1 |
|
3 |
- |
Bushing, Ø90 mm, Ø3.54 in. |
1 |
|
4 |
3315356200 |
Scraper ring |
1 |
|
5 |
0663210498 |
O-ring |
4 |
|
6 |
3315277800 |
Stop ring |
1 |
|
7 |
0686100009 |
Plug, Ø10 mm, Ø0.39 in. |
1 |
|
8 |
0686644207 |
PLUG |
6 |
|
9 |
3315395200 |
Water Nossle |
1 |
|
10 |
3315135000 |
Lock pin |
1 |
|
11 |
0108169127 |
Spring pin, option |
1 |
|
12 |
3315134900 |
Retainer bar |
2 |
|

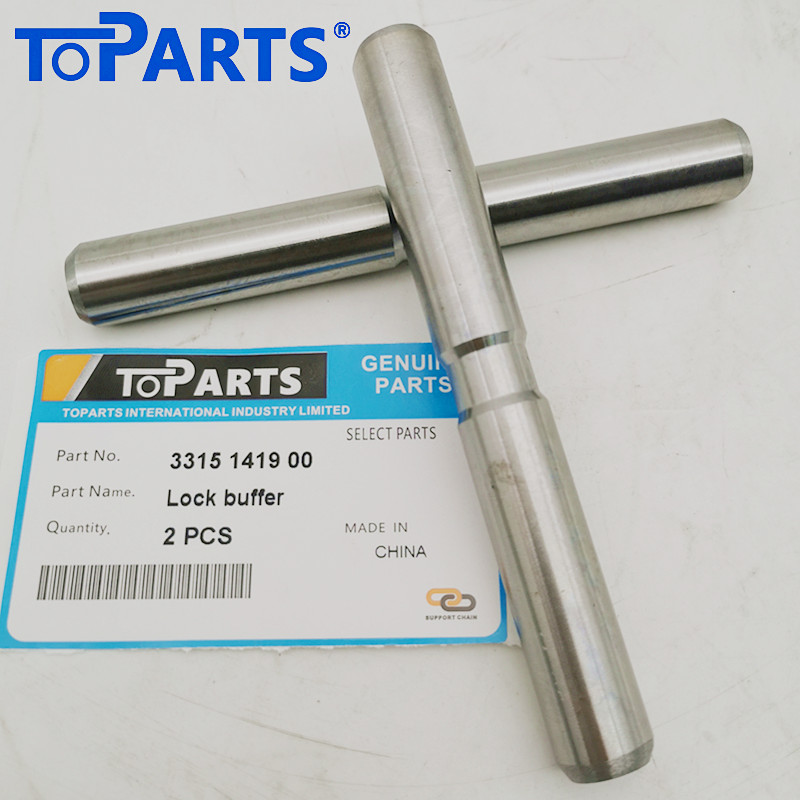

13 |
3315141900 |
LOCK BUFFER |
1 |
|
14 |
0686371803 |
PLUG |
1 |
|
15 |
3315359600 |
Coil spring |
1 |
|
16 |
3315359500 |
Diaphragm support |
1 |
|
17 |
3315289000 |
Diaphragm |
1 |
|
18 |
3315282410 |
Accumulator house |
1 |
|
19 |
0211196534 |
HEX SOCK. SCREW |
8 |
|
20 |
0686371805 |
PLUG |
1 |
|
21 |
3115329002 |
SEAL RING |
1 |
|
22 |
0663212000 |
O-RING |
1 |
|
23 |
3315366000 |
VALVE |
1 |
|
24 |
0101414000 |
PIN |
1 |
|
25 |
0663211400 |
O-RING |
1 |
|
26 |
0580001846 |
PIPE COUPLING |
1 |
|
27 |
- |
NIPPLE |
2 |
|
28 |
0664000003 |
Seal ring |
1 |
|
30 |
3361353486 |
Cap |
2 |
|
31 |
0544215300 |
GREASE NIPPLE |
1 |
|
32 |
0663990036 |
Seal ring |
2 |
|
33 |
0686371801 |
PLUG |
3 |
|
34 |
3315335000 |
Pressure relief valve, complete |
1 |
|
35 |
- |
VALVE PLUG |
1 |
|
36 |
- |
Pressure relief valve |
1 |
|
37 |
0663905401 |
O-ring |
1 |
|
38 |
0663903201 |
O-RING |
1 |
|
39 |
3315336700 |
PLUG |
1 |
|
40 |
0665909956 |
Wiper |
1 |
|
41 |
0665070130 |
Piston rod seal |
1 |
|
42 |
0663210494 |
O-RING |
7 |
|
43 |
0663211516 |
O-ring, |
1 |
|
44 |
3315277420 |
Liner |
1 |
|
45 |
3315277300 |
Piston |
1 |
|
46 |
0665070129 |
Piston rod seal |
1 |
|
47 |
3315293110 |
Back head |
1 |
|
48 |
3315244881 |
CHECK VALVE |
1 |
|
49 |
- |
CHECK VALVE |
1 |
|
50 |
3315280800 |
VALVE RUBBER |
1 |
|
51 |
0147148103 |
SCREW, HEX HEAD |
8 |
|
52 |
3315352020 |
Valve cover |
1 |
|
53 |
0663211444 |
O-RING |
2 |
|
54 |
3315277600 |
SLIDE |
1 |
|
55 |
3315295100 |
Base plate |
1 |
|
56 |
3315296490 |
Bolt kit |
1 |
|
57 |
- |
Screw M6 x 20 mm 8.8 A2K |
8 |
|
58 |
- |
Nut, M16 |
8 |
|
59 |
0211110349 |
Screw, M14 x 65 mm |
2 |
|
60 |
0665090014 |
SEAL RING |
2 |
|
61 |
3315369460 |
Restrictor, complete |
|
|
62 |
0663210421 |
O-RING |
|
|
63 |
- |
Restrictor, ø6 mm(standard) |
|
|
64 |
0663212141 |
O-RING |
|
|
65 |
3315369200 |
Restrictor plug |
|
|
66 |
3315439145 |
Protective plug HATCON |
4 |
|
67 |
3315439101 |
HATCON label |
1 |
Our customers

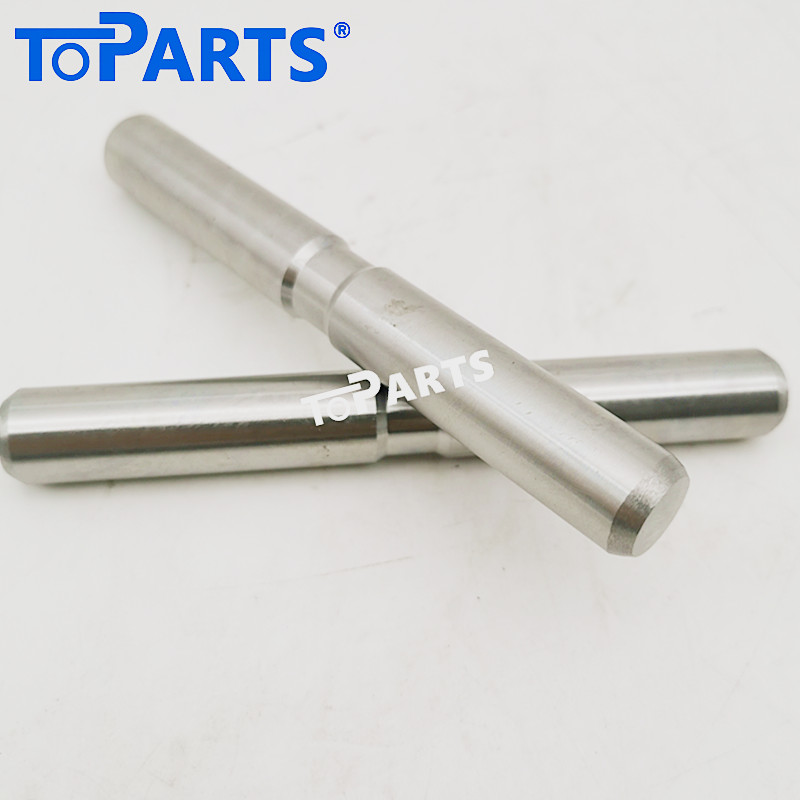

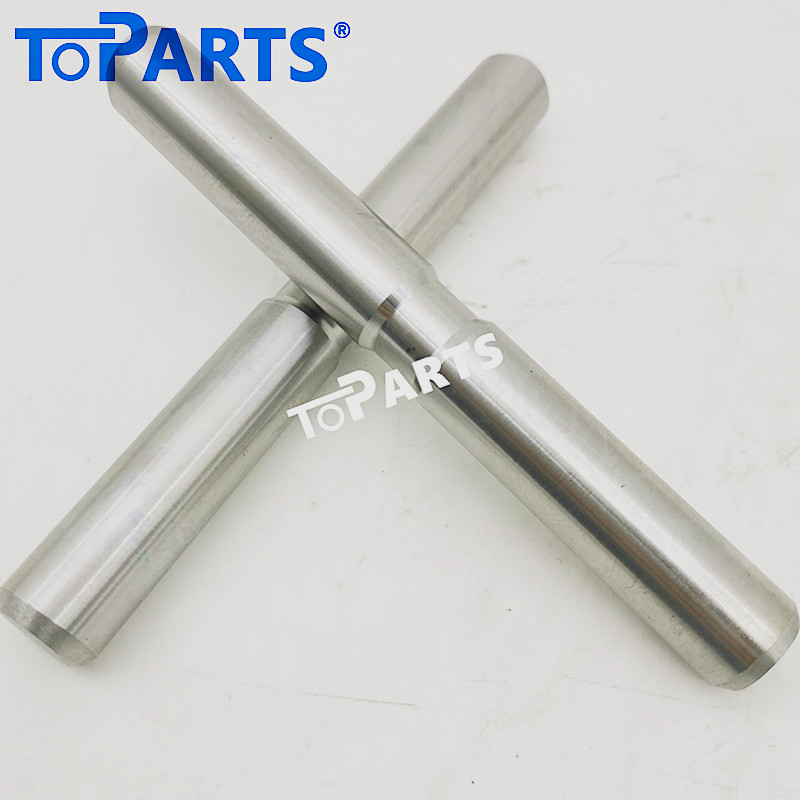

Toparts 3315135000 Lock Pin for Atlas Copco SB202 Hydraulic Breaker
Ensure the reliable operation of your Atlas Copco SB202 hydraulic breaker with the Toparts 3315135000 Lock Pin. Engineered for precision and durability, this critical component plays a vital role in securing your breaker's working tools, preventing movement during demanding operations, and ensuring optimal performance and safety on the job site.
Why Choose the Toparts 3315135000 Lock Pin?
- Perfect Compatibility: Specifically designed to fit the Atlas Copco SB202 hydraulic breaker, guaranteeing a seamless and secure fit.
- Superior Durability: Manufactured from high-quality, robust materials, our lock pin is built to withstand the extreme forces and harsh conditions associated with hydraulic breaking, offering extended service life and reducing downtime.
- Enhanced Safety: A properly functioning lock pin is essential for preventing accidental tool detachment, significantly improving operator safety and preventing potential damage to equipment.
- Reliable Performance: By securely holding your breaker's tools in place, the Toparts 3315135000 Lock Pin helps maintain consistent striking power and efficiency, maximizing your productivity.
- Trusted Quality from Toparts: With years of experience in providing high-quality aftermarket parts for heavy machinery, Toparts is a name you can trust for reliable and cost-effective solutions.
Key Features:
- Part Number: 3315135000
- Application: Atlas Copco SB202 Hydraulic Breaker
- Function: Secures working tools (chisels, moil points, etc.) within the breaker
- Material: High-grade, wear-resistant steel
- Manufacturing: Precision-engineered to OEM specifications for accurate fit and function
Investing in genuine quality replacement parts like the Toparts 3315135000 Lock Pin is crucial for maintaining the longevity and efficiency of your hydraulic breaker. Don't compromise on safety or performance – choose Toparts for dependable quality.
