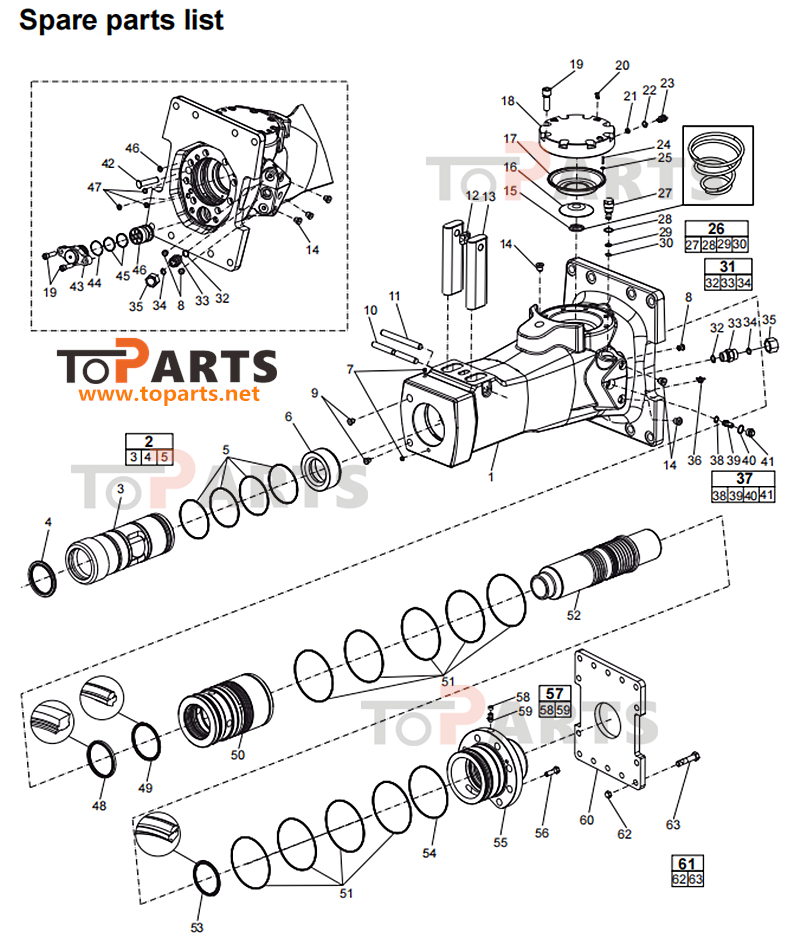

Parts list
|
No. |
Description |
Quantity |
Part number |
|
1 |
Breaker body |
1 |
- |
|
2(3-5) |
Bushing standard, complete |
1 |
3315312480 |
|
3 |
Bushing |
1 |
- |
|
4 |
Scraper ring |
1 |
3315353600 |
|
5 |
O-ring |
4 |
0663714700 |
|
6 |
Stop ring |
1 |
3315312300 |
|
7 |
Plug |
2 |
- |
|
8 |
Plug |
3 |
0686644207 |
|
9 |
Water nozzle, standard |
2 |
3315395200 |
|
10 |
Lock pin |
1 |
3315155800 |
|
11 |
Spring pin, option |
1 |
0108169129 |
|
12 |
Lock buffer |
1 |
- |
|
13 |
Tool retainer |
2 |
3315155700 |
|
14 |
Plug |
6 |
0686371801 |
|
15 |
Coil spring |
1 |
3315303500 |
|
16 |
Diaphragm support |
1 |
3315303201 |
|
17 |
Diaphragm |
1 |
3315303300 |
|
18 |
Accumulator house |
1 |
3315303100 |
|
19 |
Hexagon socket screw |
10 |
0211196544 |
|
20 |
Plug |
1 |
0686371805 |
|
21 |
Seal ring |
1 |
3115329002 |
|
22 |
O-ring |
1 |
0663212000 |
|
23 |
Charge valve |
1 |
3315366000 |
|
24 |
Parallel pin |
1 |
0101414000 |
|
25 |
O-ring |
1 |
0663211400 |
|
26(27-30) |
Pressure relief valve, complete |
1 |
3315365800 |
|
27 |
Pressure relief valve |
1 |
- |
|
28 |
O-ring |
1 |
9125621100 |
|
29 |
O-ring |
1 |
0663210421 |
|
30 |
Back-up ring |
1 |
0661200401 |
|
31(32-34) |
Nipple, complete |
1 |
0570700004 |
|
32 |
Seal ring |
1 |
0664000004 |
|
33 |
Nipple |
1 |
- |
|
34 |
O-ring |
1 |
0663210217 |
|
35 |
Cap |
2 |
0570700010 |
|
36 |
Grease nipple |
1 |
0544215300 |
|
37(38-41) |
Restrictor standard, complete |
1 |
3315369687 |
|
38 |
O-ring |
1 |
0663210421 |
|
39 |
Restrictor standard |
1 |
- |
|
40 |
O-ring |
1 |
9125621100 |
|
41 |
Plug |
1 |
3315369200 |
|
42 |
Plug |
1 |
3315336700 |
|
43 |
Valve cover |
1 |
3315362800 |
|
44 |
O-ring |
1 |
0663211491 |
|
45 |
Seal ring |
2 |
0663990026 |
|
46 |
Control valve |
1 |
3315312100 |
|
47 |
Seal ring |
4 |
0665090014 |
|
48 |
Wiper |
1 |
0665909950 |
|
49 |
Piston rod seal |
1 |
0665070147 |
|
50 |
Liner |
1 |
3315312000 |
|
51 |
Seal ring |
9 |
0663990032 |
|
52 |
Piston |
1 |
3315311900 |
|
53 |
Piston rod seal |
1 |
0665070148 |
|
54 |
O-ring |
1 |
0663210417 |
|
55 |
Back head |
1 |
3315312600 |
|
56 |
Hexagon head screw |
8 |
0147155503 |
|
57(58-59) |
Check valve, complete |
1 |
3315244881 |
|
58 |
Valve rubber |
1 |
3315280800 |
|
59 |
Check valve |
1 |
- |
|
60 |
Base plate, option |
1 |
3315307700 |
|
61(62-63) |
Set of eight screws, complete |
1 |
3315323890 |
|
62 |
Nut |
8 |
- |
|
63 |
Screw |
8 |
- |
Product Description

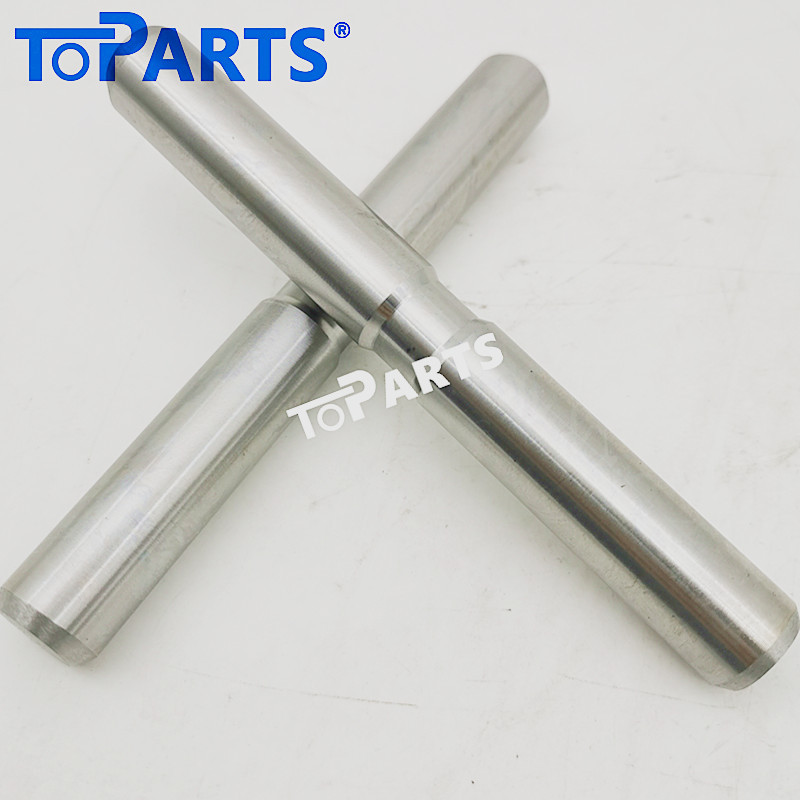

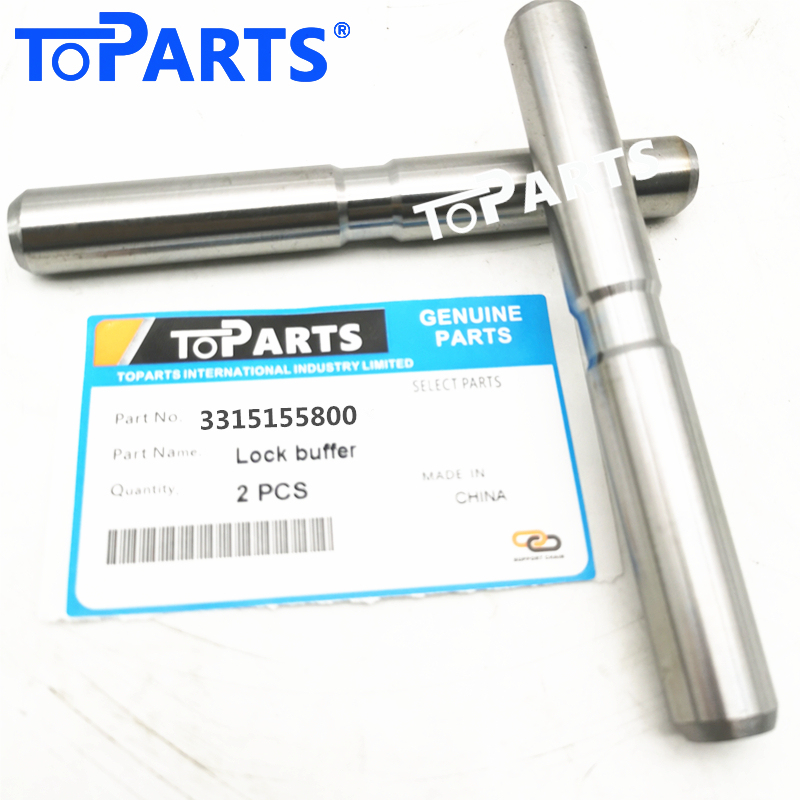

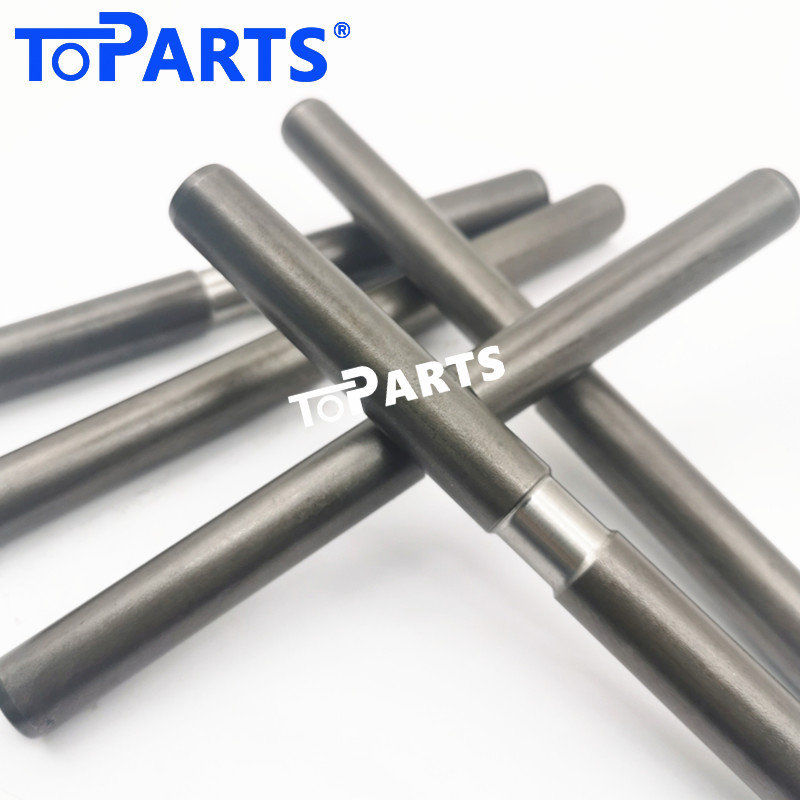

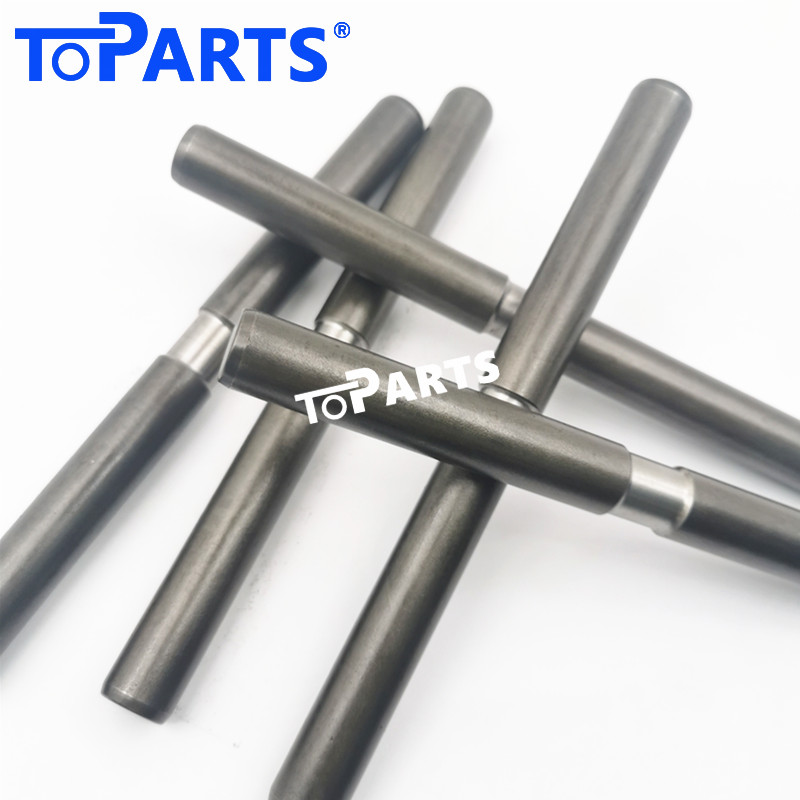

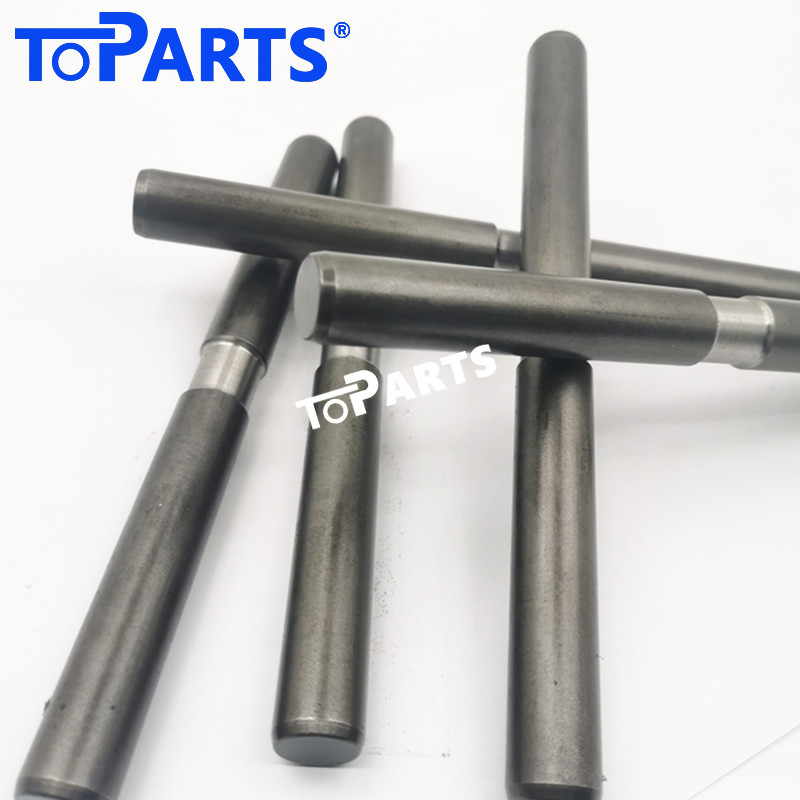

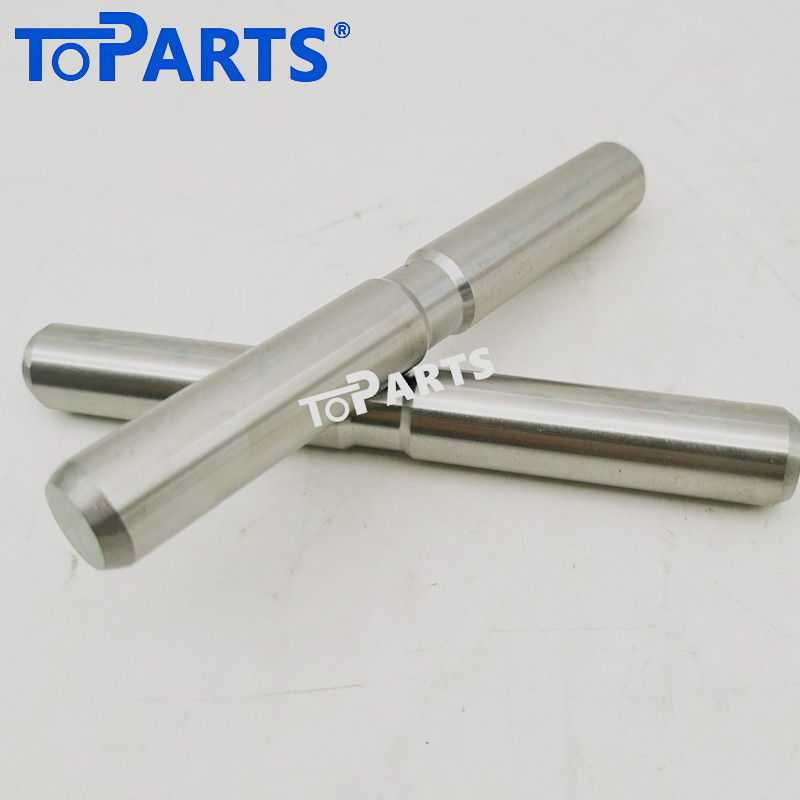

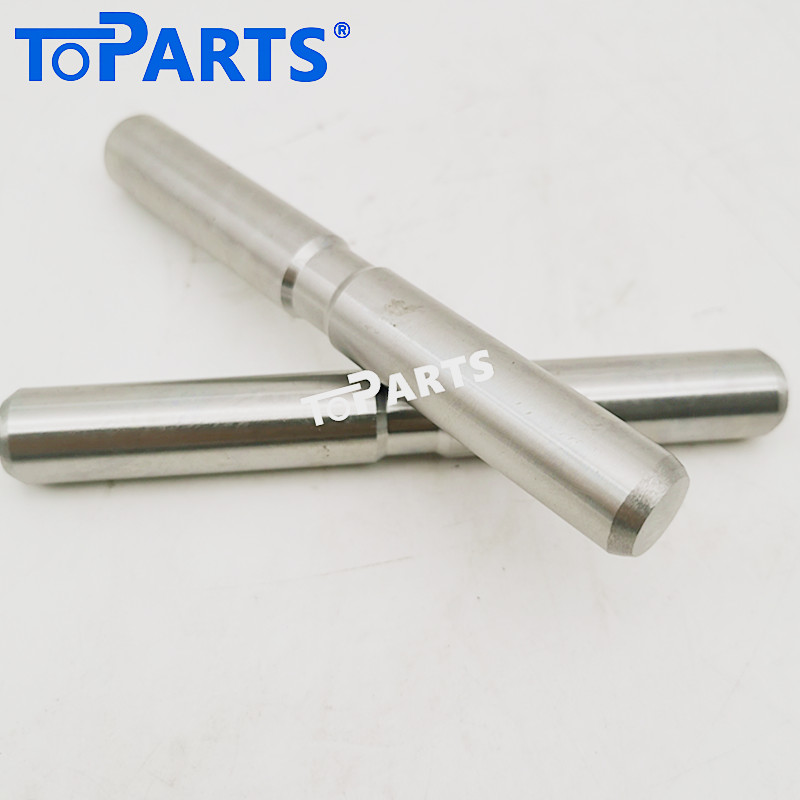

High-Strength Lock Pin 3315155800 for Atlas Copco SB452 Hydraulic Breakers
Keep your breaking operations running smoothly with this premium Lock Pin (Chisel Pin), specifically designed for Atlas Copco SB452 hydraulic hammers. This critical component (Part Number 3315155800 / 3315 1558 00) ensures your chisel/tool stays securely held within the front head during high-impact demolition work.
At Toparts, we manufacture our pins using heat-treated alloy steel to ensure they can withstand the extreme vibration and shear forces typical of heavy-duty breaking applications.
Product Features:
Exact Fitment: Engineered as a direct replacement for Atlas Copco SB452 hydraulic breakers.
OEM Part Compatibility: Fully matches part numbers 3315155800 and 3315 1558 00.
Superior Durability: Made from high-grade alloy steel and heat-treated for enhanced surface hardness and core toughness.
Wear Resistance: Designed to resist deformation and fracturing under constant impact, extending the life of your breaker's front head.
Easy Installation: Precision dimensions allow for quick tool changes and reduced maintenance downtime.
Technical Specifications:
Machine Brand: Atlas Copco
Hammer Model: SB452
Component Type: Lock Pin / Chisel Pin / Tool Retainer
Part Numbers: 3315155800, 3315 1558 00
Material: Heat-Treated Alloy Steel
